UltraPort エクスプレス シリアルカード

シリアル接続のための確実で高速なPCIエクスプレス シリアルカード

Perle UltraPortエクスプレス シリアルカードは、一定数のローカルポートを必要とするアプリケーションの理想的なソリューションです。1または2RS232 PCIシリアルポートとPerle UltraPort エクスプレス製品が、PCIエクスプレススロットを使用したサーバープラットホームのために順応性、ハイパフォーマンス、優れた処理能力、そして信頼できるソリューションを提供いたします。

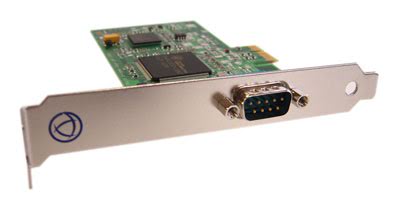

UltraPort Express Serial Card

UltraPort Express Serial Card

UltraPort Express Serial Card
  • 概要
  • 技術的仕様
  • ドキュメント
  • 注文情報

特徴と利点:

  • Windowsの主なOS、Vista、Linux、Solaris、SCO UNIX搭載機でご利用いただけます
  • 最速 921.6 Kbps/ポートの双方向スピード
  • x1、x4、 x8 およびx16 レーン PCI エクスプレススロットとの互換性
  • 1または2RS232 PCIシリアルポートとの順応性のあるソリューション
  • 安心なESDサージ保護
  • 完全なモデム制御およびハードウェア/ソフトウェアのフロー制御
  • Specialix、 Chase、およびDigiの多種多様なケーブルと接続オプション
  • Reach, RoHS and WEEE Compliant

Perle UltraPort エクスプレスカードは、POSのソリューション変動域の提供、データ収集、オフィス オートメーション、高度なキオスク設計、およびその他の機能を提供している今日の流通製品では最も進んだ一定ポートシリアルカードです。

Perle UltraPortエクスプレスの双方向スピードは最速921.6Kbps/ポートで、データの信憑性と安全を保証する効果的な高度なサージ保護を提供します。

DB9、DB25、およびRJ45などの多種多様なケーブルと連結ボックスが、Perle Systems(旧Specialix International、Chase Research) およびDigi Internationalで最も好評なピン配列をサポートします。サーバーとカードを最新のPCI規格にアップグレードする際には、Perleだけがケーブルのリプレースで生じる経費の無駄遣いを防ぐことができます。

業界随一のサポートおよび保証

Perle UltraPortエクスプレス シリアルカードに関するPerleの独自の生涯保証を含む業界で最も優れたサービスとサポートをお約束します。1976年以来、お客様に最上級のパフォーマンス、順応性および品質を提供しているPerleをお選びください。

アプリケーション

  • POSキャッシュ レジスター、レシートプリンター、バーコード スキャナーなどは、バックオフィス サーバーと接続する必要があります
  • 郵便局、スーパーマーケット、販売代理店など
  • 医療:病院におけるベッド脇の健康管理機器とナースステーションとの接続臨床情報システム
  • GP実施管理システム
  • 生産過程管理およびその監視
  • 車用品の在庫管理
  • マルチユーザー ワークグループ
  • 運送
  • 車両自動認識(AVI)機器、レーダー、赤外線車両スキャナー、および料金徴収システムのレシートプリンターとメッセージ表示との接続
  • 空港の手荷物処理
  • キオスク
  • 内部モデム、タッチスクリーン、レシートプリンター、キーボードなどの接続
    硬貨計数機、ガソリンスタンドの料金支払い所
  • 教育
  • 100%のカードまたはバッジ読み取り機によるアクセス制御(出入口)システム
  • コンピュータールームの使用、工場、工業および倉庫のオートメーションのアクセス シリアル
  • ダイヤルイン/ダイヤルアウトでのリモートアクセス
  • モデムプールの接続
p class="center">Diagram UltraPort Express Serial Card

UltraPort Express Serial Card

Diagram UltraPort Express Serial Card

HTSUS Number: 8473.30.1080 ECCN Code: 5A991

UltraPort Express Serial Cards - Technical Specifications

Supported Operating System Drivers: Download

  • Linux 3.x, 2.6.x, 2.4.x, 2.2.16+ (32 / 64 Bit)
  • Solaris (x86 and SPARC 32 / 64 Bit)
  • SCO OpenServer6
  • SCO UnixWare
  • Windows® Server 2016
  • Windows® 10
  • Windows® Server 2012 R2
  • Windows® 8.1 (32 / 64 Bit)
  • Windows® Server 2012
  • Windows® 8 (32 / 64 Bit)
  • Windows® Server 2008 R2
  • Windows® Server 2008 (32 / 64 Bit)
  • Windows® Server 2003 (32 / 64 Bit)
  • Windows® 7 (32 / 64 Bit)
  • Windows® Vista (32 / 64 Bit)
  • Windows® XP (32 / 64 Bit)
  • Windows® 2000
  • Windows® NT

Connectors

UltraPort1 Express: 1 on-board DB9M
UltraPort2 Express: 2 on-board DB9M



Serial Port Protection:

15Kv Electrostatic Discharge Protection ( ESD )

Signal Support:

TXD, RXD, RTS, CTS, DTR, DCD, DSR, RI

Dimensions:

UltraPort1 Express: H: 64.4mm x L:112.3mm
UltraPort2 Express: H: 64.4mm x L:112.3mm



Host Interface:

  • Full PCI plug and play compliant
  • X1 lane - inserts into x1, x4, x8 and x16 lane PCI Express ( PCIe ) slots
  • Single interrupt per card
  • Up to 4 cards per host

Environmental:

  • Operating temperature: 0° to 55° C
  • Storage temperature: -40° to 66° C
  • Relative Humidity: 10 to 90%, non-condensing

Approvals:

IEC 60950
EN60950-1:2001 +A11:2004
ANSI/UL 60950
EN55024:1998 + A1:2001 + A2:2003
FCC Part15 ,Class B
EN55022:1998 + A1:2000 + A2:2003 Class A
CAN/CSA 22.2, No.60950
ICES-003, Class B
